| Brand Name : | liangru |
| Model Number : | Alloy200 |
| Certification : | ISO9001:2015 |
| Price : | To negotiate |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 50~80 TONS per MONTH |
| Delivery Time : | 45~60days |

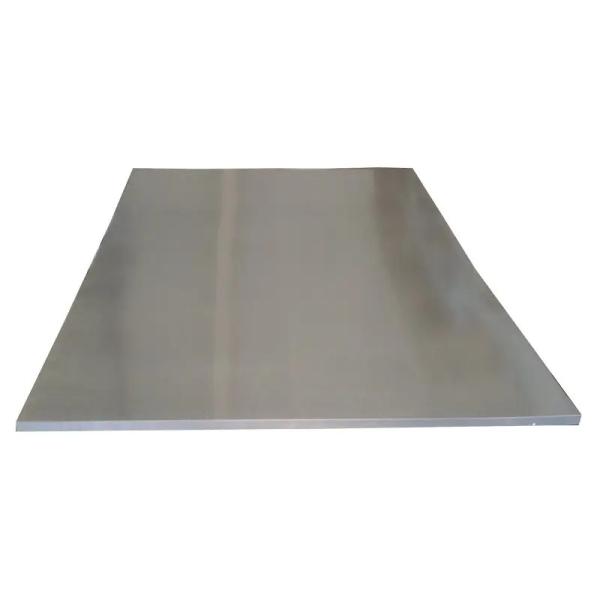

Ni200 Pure Incoloy Alloy Wire Strip Rod Tube Plate STM B 443 Nickel Alloy Inconel 625
Application:High temperature components such as turbine blades, guide vanes,
turbine disks,
high pressure compressor disks,machine manufacturing and combustion
chambers used in the manufacture of aviation, naval and industrial
gas turbines
Ni200 is also known as NO2200,Nickel200, Ni200, NW2200
Nickel200 is a pure nickel material, which has good corrosion resistance and can work steadily for a long time in acid, alkali, salt and etc corrosive medium, its high temperature property is relatively poor and usually can only work stably in the high temperature environment below 500℃.
Nickel200 also has good electrical conductivity and magnetic properties, which is suitable for radio, electric light source, mechanical manufacturing, chemical alkali, filter screen, battery, electrode and etc
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Element | Ni | C | Fe | Mn | Si | Cu |
| Content | >99.2% | <0.15% | <0.4% | <0.35% | <0.35% | <0.25% |
| Density | 8.89g/cm3 |
| fusing temperature | 1435℃ |
As Nickel200 is a pure nickel material, its mechanical properties are very low, with the usual tensile strength of 380 MPa and yield strength of 105 MPa.
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe | ¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
|
|
