    0.15mm-0.2mm Pure Nickel Alloy Strip For 18650 Cylinder Battery Welding

    Ask Lasest Price
    Brand Name : Runlai
    Model Number : N4,N6,Ni200,Ni201
    Certification : CE,ROHS,ISO 9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 tons per month
    Delivery Time : 20~40 Days
    • Product Details
    • Company Profile

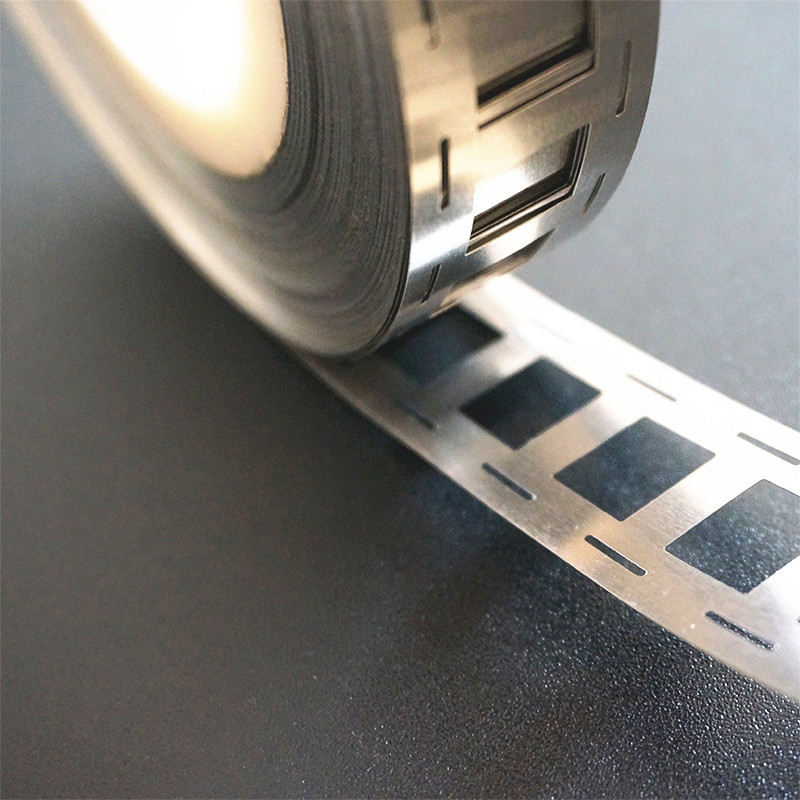

    0.15mm-0.2mm Pure Nickel Alloy Strip For 18650 Cylinder Battery Welding

    0.15mm-0.2mm Thickness Pure Nickel Alloy Strip For 18650 Cylinder Battery Welding


    Product Introduction


    Pure nickel strip is a key material in battery manufacturing, known for its high purity (usually above 99.95%) and excellent conductivity, which can effectively reduce the internal resistance of the battery and improve power output. Its good corrosion resistance keeps it stable in the battery electrolyte, extending the battery life. Pure nickel strips also have good mechanical properties and are suitable for manufacturing components such as battery terminals, connectors, and spacers, ensuring efficient current transmission and stability of battery systems. Through high-precision rolling processes and strict quality control, pure nickel strips meet the high standard requirements of battery manufacturing, significantly improving the performance and reliability of batteries, and providing strong support for technological progress and product innovation in the battery industry.


    Parameter


    Grade
    Ni+Co
    Cu
    Si
    Mn
    C
    Mg
    S
    P
    Fe
    N4
    99.8
    0.015
    0.03
    0.002
    0.01
    0.01
    0.001
    0.001
    0.04
    N6
    99.6
    0.10
    0.10
    0.05
    0.10
    0.10
    0.005
    0.002
    0.10
    Ni201
    ≥99.0
    ≤0.25
    ≤0.35
    ≤0.35
    ≤0.02
    /
    ≤0.01
    /
    ≤0.40
    Ni200
    ≥99.2
    ≤0.25
    ≤0.35
    ≤0.35
    ≤0.15
    /
    ≤0.01
    /
    ≤0.40

    Material
    18650/21700/26650/32650 nickel strip
    Dimension
    1P to 9P
    Available Space
    18.5mm,19mm, 19.5mm, 20.2mm
    Usage
    Use for 18650 battery pack
    Package
    Nickel strip in roll pack into carton
    Physical properties
    High temperature resistant, corrosion resistance,
    Technical support
    With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can open mold independently.
    Functions
    Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and other energy products
    Advantage
    All materials are degreased and adopt the dry -punching technology to ensure that the product is clean.


    Specific Applications


    Pure nickel strips have various important applications in battery manufacturing, mainly due to their excellent conductivity, corrosion resistance, and mechanical properties:

    • Negative electrode current collector: In lithium batteries, pure nickel strips are commonly used to manufacture negative electrode current collectors, replacing traditional copper strips. Due to the low resistivity of nickel, it can improve the energy density and power of batteries.
    • Battery ear: The ear is an important part of the battery responsible for transmitting current. The use of pure nickel strips as electrode ear materials can enhance the stability and efficiency of current transmission.
    • Connecting piece and lead out piece: In a battery pack, connecting piece and lead out piece are used to connect various battery cells to transmit current. Pure nickel strips are widely used as materials for these components due to their excellent conductivity and corrosion resistance.
    • Improving battery performance: The low internal resistance and antioxidant properties of pure nickel strips help to extend the discharge time of the battery, making the spot welding of the battery more secure, thereby improving the overall performance of the battery.

    These applications make pure nickel strips an indispensable material in battery manufacturing, especially in the field of new energy batteries.


    Advantages and Characteristics


    1. Excellent conductivity: Pure nickel strip has high conductivity and low resistance, which can effectively reduce the internal resistance of the battery, improve the power output and charge discharge efficiency of the battery.
    2. Good corrosion resistance: It performs well in various acidic and alkaline environments, especially in alkaline media, and has excellent corrosion resistance, which can effectively extend the service life of batteries.
    3. High mechanical strength and ductility: Pure nickel strips have good mechanical properties and are easy to process into various shapes, making them suitable for manufacturing components such as battery lugs and connectors.
    4. Chemical stability: In harsh environments such as high temperature and high humidity, pure nickel strips can maintain stable chemical properties, improving the safety and reliability of batteries.

    Contact Us

    Email:fbwlau@cnrunlai.com

    Oem service:
    Welcome customized size
    We are experience factory for OEM&ODM service


    Q&A


    Q: What is the purity of pure nickel strip?
    Answer: The purity of pure nickel strip is usually above 99.95%.
    Q: What are the main characteristics of pure nickel strip?
    Answer: Pure nickel strip has excellent corrosion resistance, good mechanical properties, electrical and thermal conductivity, as well as magnetism.
    Q: In which fields are pure nickel strips used?
    Answer: Pure nickel strips are widely used in industries such as chemical, electroplating, electronics, lithium batteries, battery terminals, metal stamping parts, electric vehicles, telecommunications, electric vacuum, and special light bulbs.
    Q: What are the hardness states of pure nickel strips?
    Answer: The hardness states of pure nickel strips include soft (M), quarter hard (1/4Y), semi hard (1/2Y), hard (Y), etc.
    Q: What is the density of pure nickel strip?
    Answer: The density of pure nickel strip is 8.9 g/cm ³.
