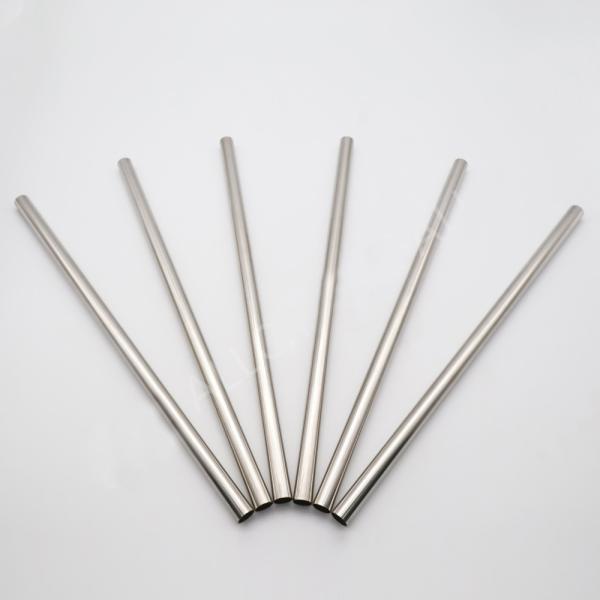

1/2~48 Inconel Special Alloy Pipes Inconel 600 Seamless Tube
Product Introduction
Inconel 600 tube is a high-performance nickel chromium iron-based solid solution strengthened alloy tube with excellent high-temperature corrosion resistance and oxidation resistance. Its main components include about 72% nickel, 14% -17% chromium, and 6% -10% iron, which endow Inconel 600 tube with excellent corrosion resistance, especially in high temperature and corrosive environments. Inconel 600 tube has satisfactory thermal strength and high plasticity below 700 ° C, and can resist corrosion from various chemical media, including alkaline solutions, acids, organic compounds, and seawater. Its density is 8.47 g/cm ³ and its melting point is between 1354-1413 ℃. Inconel 600 tube is widely used in aerospace, chemical, energy, and marine engineering fields, for manufacturing high-temperature components such as combustion chambers, nozzles, turbine blades, and fasteners for aircraft engines, as well as components such as pumps, valves, and pipelines in nuclear power plants.
Parameter
Chemical Properties of Inconel 600
| C | Cr | Ni+Co | Al | Ti | Fe | Nb+Ta | Mn | Si | P | S | Cu |
| ≤0.15 | 14.0～17.0 | ≥72 | ≤0.35 | ≤0.50 | 6.0～10.0 | ≤1.0 | ≤1.0 | ≤0.5 | ≤0.04 | ≤0.015 | ≤0.5 |
| ITEM | θ/℃ | TENSIE STRENGTH | HBS | |||
| σb/MPa | σP0.2/MPa | δ5/% | φ/% | |||
| BAR/ROD | 20 | ≥585 | ≥240 | ≥30 | - | 134～217 |
| RING | 20 | ≥520 | ≥205 | ≥35 | - | ≥187 |
| HOT ROLL PLATE | 20 | ≥550 | ≥240 | ≥35 | ≥40 | - |
| 900 | ≥95 | ≥45 | ≥40 | ≥50 | - | |
| COLD ROLLED SHEET | 20 | ≥550 | ≥240 | ≥30 | - | - |
| 900 | ≥90 | ≥40 | ≥60 | - | - | |
| COLD ROLLED SHEET | 20 | ≥550 | ≥200 | ≥30 | - | - |
| STRIP | 20 | ≥550 | ≥240 | ≥30 | - | - |
| WIRE | 20 | - | HV≤151 | |||
Shape | Size(mm) |
WIre | 0.5-7.5 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube | custom made |
Plate | custom made |
Specific Applications
Inconel 600 Tube, as a high-performance nickel based alloy, has excellent corrosion resistance and high-temperature strength, and is widely used in the following major industrial fields:
Advantages and Characteristics
Contact Us
Email:fbwlau@cnrunlai.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Related Questions and Answers
What are the main components of Inconel 600?
The main components of Inconel 600 are nickel (about 72%), chromium
(14-17%), and iron (6-10%), which are the key to its powerful
performance and versatility.
What is the corrosion resistance of Inconel 600?
Inconel 600 has excellent corrosion resistance, especially in
environments containing chloride ions, and its corrosion resistance
is significantly better than traditional stainless steel materials.
What is the high temperature strength of Inconel 600?
The high temperature strength of Inconel 600 enables it to be used
in environments up to 1100 ° C while maintaining good mechanical
properties. This high temperature intensity is an indispensable
characteristic in applications such as aviation engines and nuclear
reactors.
What is the processing performance of Inconel 600?
Inconel 600 has good machinability, although its high strength
makes mechanical processing relatively difficult, it can still
achieve the manufacturing of complex components through reasonable
processing technology and tool selection. In the market, many
companies have developed specialized processing tools for Inconel
600 to improve processing efficiency.
|
|
